Setup documentation that machinists actually use.
Upload your STEP file, place dimensions and setup notes directly on the 3D model, and hand clean operator instructions to the floor in minutes.
or try it with a sample part — no file needed
Three doors. Pick one.
Everything in SetupBoard starts from here — preview a real exported setup sheet, spin the live tool rack, or backplot a program in the G-code Studio.
Setup sheet creator

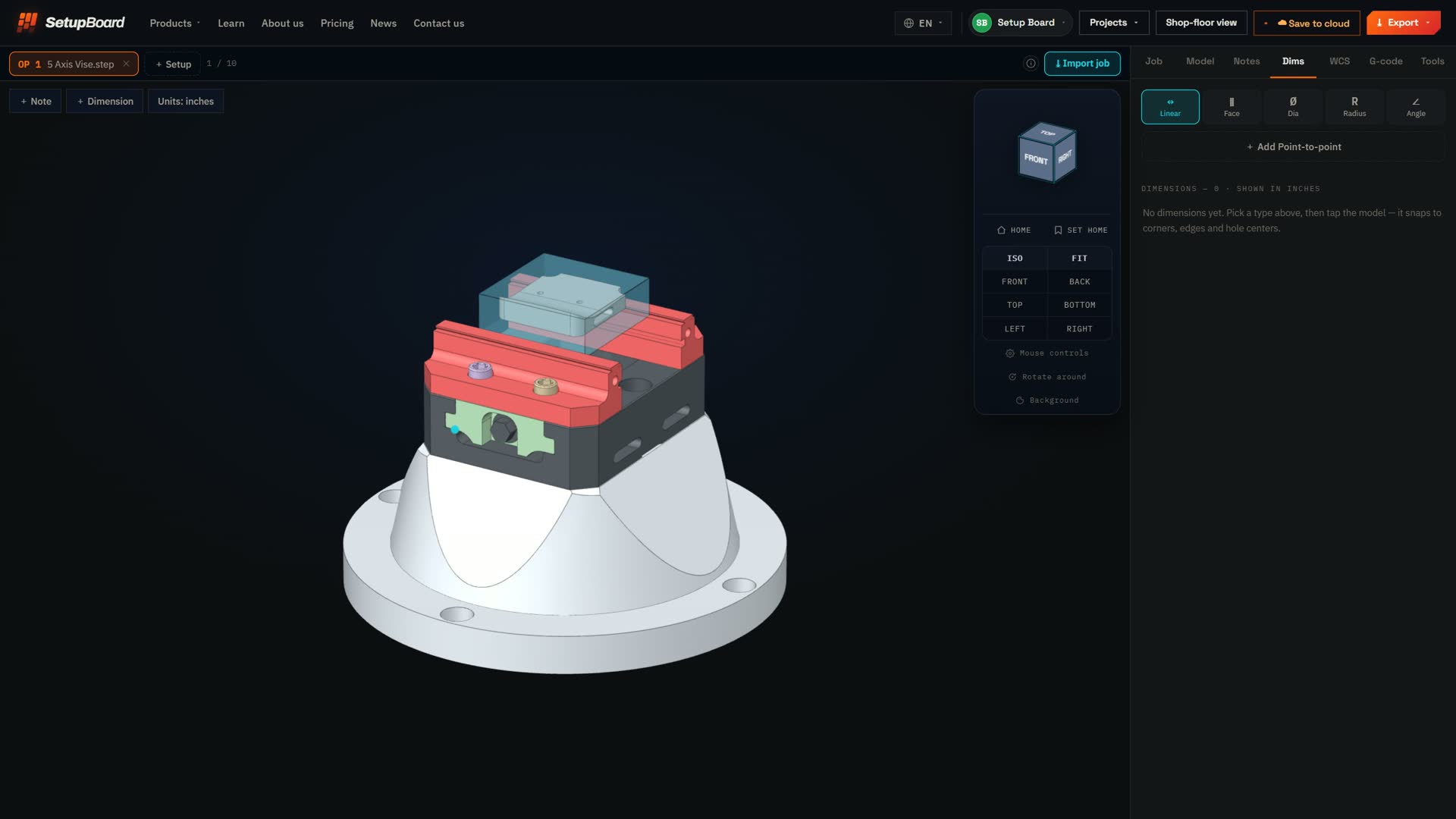

Upload the STEP export for any operation, see the real model in 3D, then pin dimensions, datums, and notes exactly where the operator needs them — and export the clean PDF sheet above.
Open the creator
Tool library
Build as many libraries as you need — or import them straight from Fusion 360, Mastercam and NX CAM — and attach tools to any setup sheet with a checkbox.
Tool libraryG-code Studio
Your STEP file is already loaded and your part zero already placed — so the toolpath plots on the real setup, part and vise included, instead of floating in space like an ordinary backplot.
G-code StudioCAM to floor in four moves
No plugin, no CAM integration required. Just the STEP export you already know how to make.
Export from your CAM
In Fusion 360, Mastercam or NX CAM, select the components for the operation you're documenting — part, stock, fixture — and export them as .step. Any operation, any number of setups.
Upload & annotate

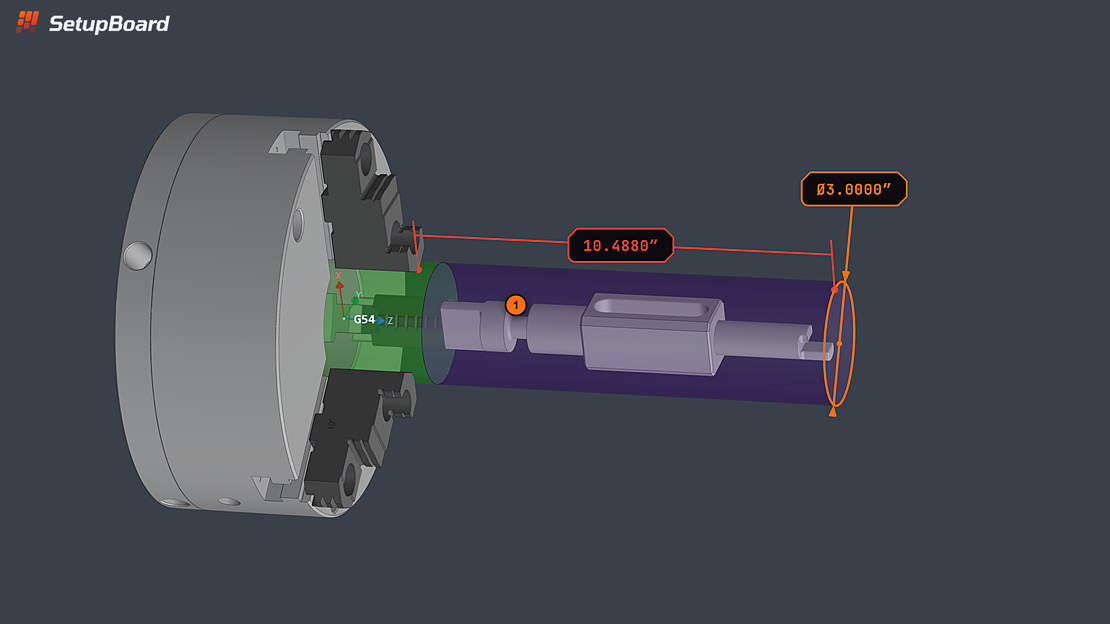

Drop the file into the creator. The real geometry loads in your browser. Tap two points to dimension, tap once to pin a note.
Convert to PDF

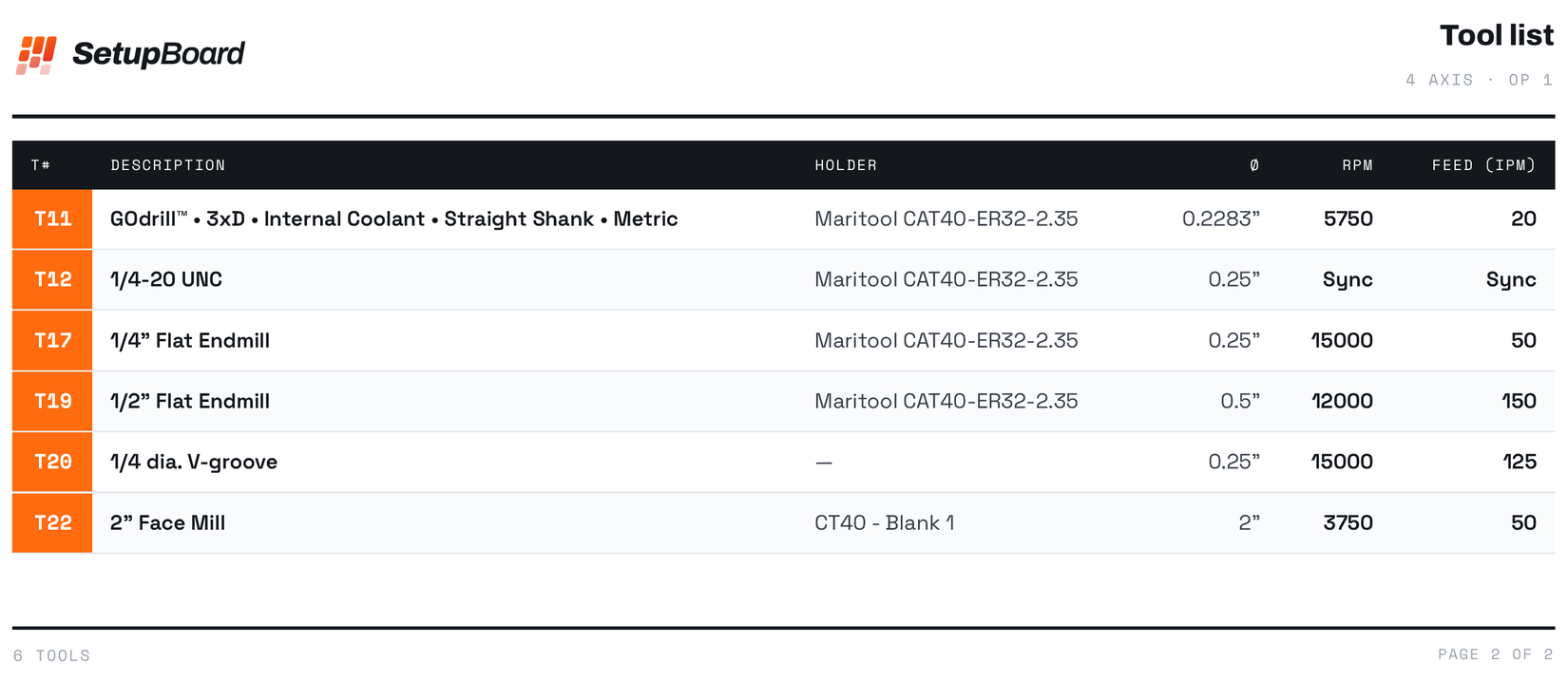

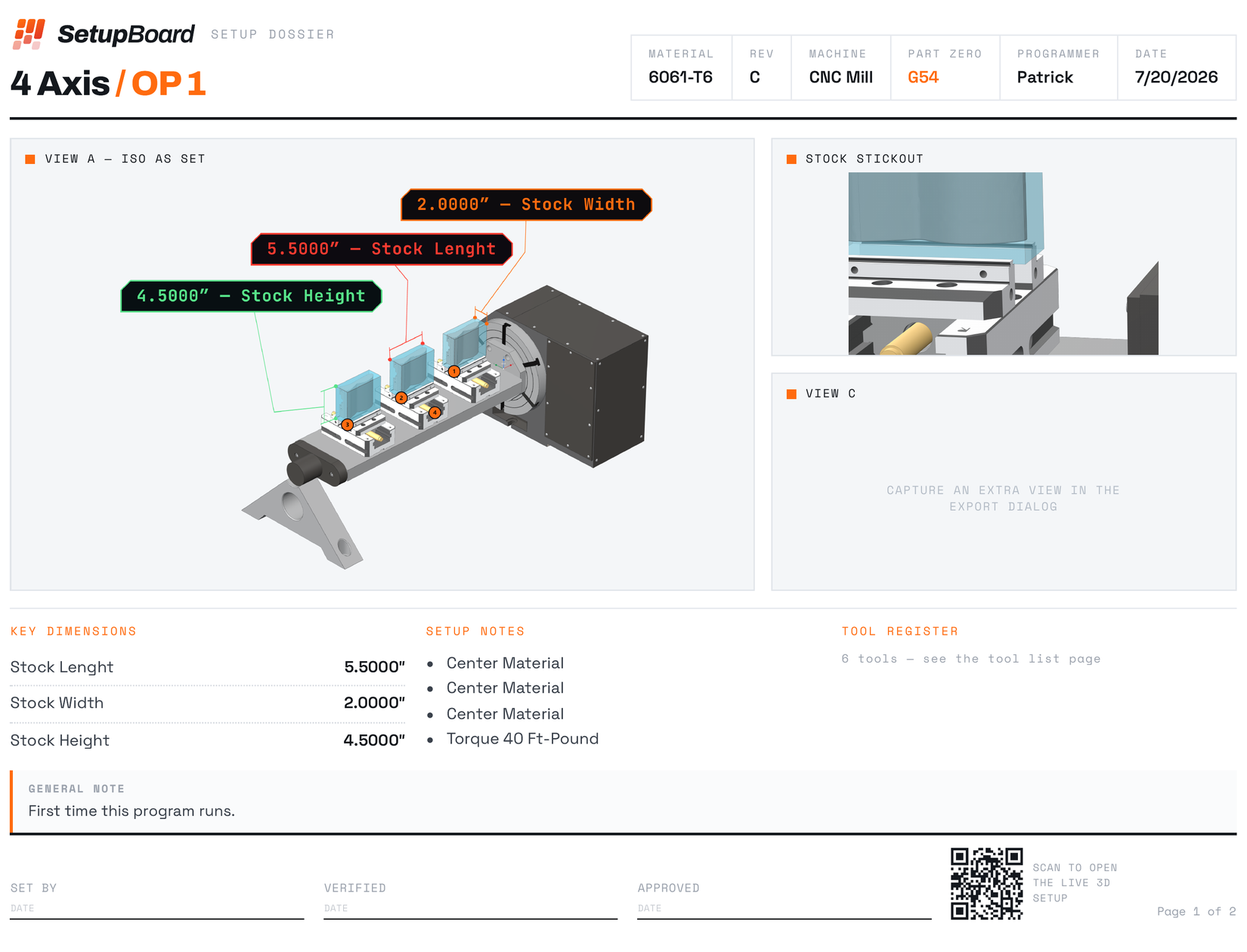

Choose a sheet template and export. SetupBoard lays your annotated model, dimensions, notes, and tool list into a clean, print-ready PDF setup sheet.
Hand it to the floor
Send the PDF or share a live link — operators rotate the real 3D setup on a tablet, read every dimension and note, and sign off at the machine.
Pricing
Start free. Paid plans open when online billing launches.
Free
For trying it out and one-off jobs
- Unlimited projects & setups
- Classic sheet template + PDF export
- QR code on the sheet — live 3D setup for operators
- 2 CAM imports to try it
- Tool libraries with cloud sync
- 250 MB cloud storage
Pro
For the programmer pushing out jobs every day
- 1 programmer seat + unlimited free operators
- Import jobs from Fusion, Mastercam & NX CAM
- Unlimited projects & setups
- All templates · revision history · G-code backplot
- 50 GB cloud storage
Shop
For the whole shop — shared standards
- Everything in Pro
- 5 programmer seats included
- +$19/seat beyond 5
- Shared projects, tool cribs & templates
- Your shop logo on every sheet
- One bill for the whole shop
- 250 GB cloud storage, shared
Custom Shop
For multi-site shops & enterprises
- Everything in Shop
- Unlimited seats / multi-site
- Dedicated onboarding
- Invoice & PO billing
- Custom Cloud Data
